Product Details

LFT-154NS 40G High Concentration Ozone generator

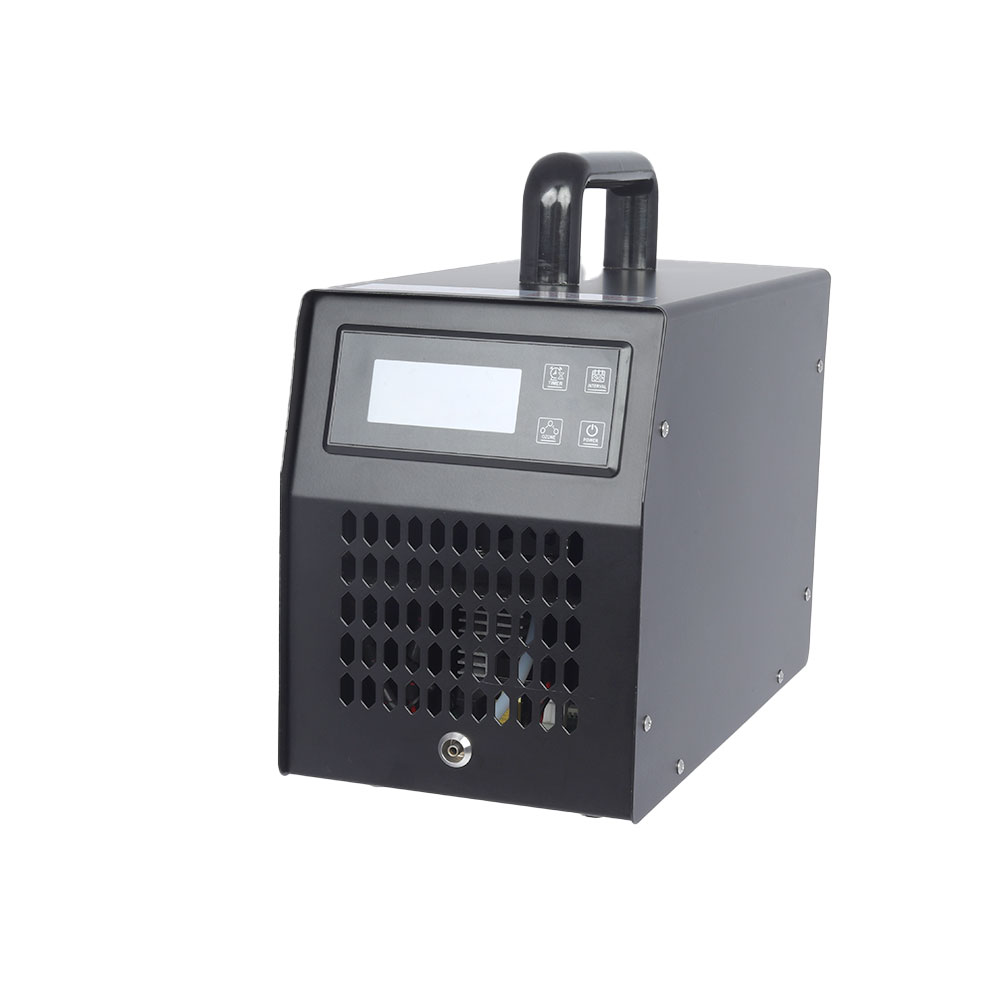

LFT-154NS 40G High Concentration Ozone generator view 1
Ozone Generator-10G
(129 views)

LFT-154NS 40G High Concentration Ozone generator

Special designed for high ozone shock treatment. Treatment After the flood, after the fire, for large space, etc. 14G ozone output, 2 hour timer , With HIGH-LOW adjuster, Low level for 7g, High level for 14g ozone output. 2PC high qualtiy blue film ceramic ozone plate. ( more than 6000 hours) more powerful, strong and durable

Available

Product Overview

Special designed for high ozone shock treatment.
Treatment After the flood, after the fire,  for large space, etc.

14G ozone output, 2 hour timer ,
With HIGH-LOW adjuster, Low level for 7g, High level for 14g ozone output.
2PC high qualtiy blue film ceramic ozone plate. ( more than 6000 hours)
more powerful, strong and durable

Model number:

LFT-154NS

LFT-154CS

Function：

LCD display, 5 adjustable ozone levels, 5 adjustable fan speeds, intelligent

Mechanical timer, 2 adjustable ozone levels

Timer：

timer, optional 12H or 24H circulation

timer,3H (Max)

LCD / APP/WIFI：

LCD

N/A

Input voltage：

110-120V/60Hz or 220-240V/50Hz

Power：

170W

Ozone plate size：

95X70 mm 2pc（Plugable）

Air flow：

Max 180CFM

Ozone production：

20000mg/h

LED UV Light：

245~275nm (2pc）

Applicable area：

800M² or 8000FT²

Noise：

45 dB

Cooling method：

Air-cooled

Air source：

Air

Net weight：

4.2kg

Gross weight：

5.2kg

Product size：

L330XW185XH207 mm

Packing size：

410X267X290 mm (1PCS/BOX)

Working Temp：

-10℃~+50℃

Storage Temp：

-20℃~+60℃

Working humidity：

10%~90% ，95℉(35℃)


Features:

  • Heat sink to reduce the heat on the ozone plate, for longer working time
  • Utilizing controlled corona discharge ozone technology developed
  • All inner terminals are stainless steel cabinet, with Timer protect box and switch protec box.
  • Stainless steel pre-filter to remove large particle
  • High quality electronic parts, UL listed fan


Applications:
1) For large space: Air sterilizer, garage, pet room, Restaurant air sterilizer, Hotel room purifier, KTV smell remover, store sterilizer, office building, Fishing shop. Etc...

2) treatment after flood and fire.

3) Sterilize and remove odor for farming, Keep fresh, Ozone generator for removing Formaldehyde( new house, hotel, office...), Refrigerator keep fresh equipment.

Function:
Effectively removes smoke, pollen, dust, animal dander, dust mites, molds, bacteria and viruses


Key Highlights

Quality Product

Premium quality materials and craftsmanship

Package Contents

  • Main Product Unit
  • User Manual

Product Specifications

N. W. /G. W. 3.75KGS/4.50KGS
Packing size 360*360*270MM
Product size W166xH225xD278MM
Input voltage 110-120VAC/60HZ; 220-240VAC/50HZ



Air flow Volume 100 CFM
Application Area 1000sq. Ft/100 sq. Meter
Power consumption 180W
